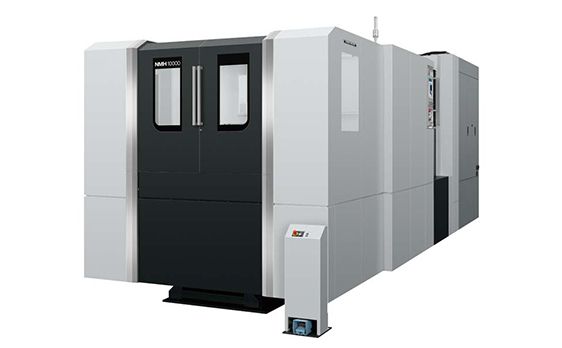

NMH10000
Brand：DMG MORI
Photo credit: DMG MORI
Rating
(0)
0
Write a review
Introduction
Cutting-edge Technologies to Overturn Notion of Parts Machining
The NMH series, 5-axis control high-precision horizontal machining centers, achieves the world's highest level of parts machining with the DMG MORI original technologies: the DCG (Driven at the Center of Gravity) and the DDM (Direct Drive Motor).
The model allows ultimately high-efficiency machining by combining the DCG that achieves outstanding acceleration and less vibration on three linear axes and the DDM that ensures the world's fastest rotary 2-axis control.
Specifications
Spindle Taper
#50
Spindle RPM
10000
Horse Power (HP)
40
Spindle Direction
Horizontal
Tool Magazine
60
Angle Head Changer
None
Table Length (inch)
39.4
Table Width (inch)
39.4
Table Loading Capacity (lbs)
5500
X Travel (inch)
61
Y Travel (inch)
63
Z Travel (inch)
51.2
X Rapid Rate (ipm)
1653
Y Rapid Rate (ipm)
1653
Z Rapid Rate (ipm)
1417
Multi-Axis
5
×
