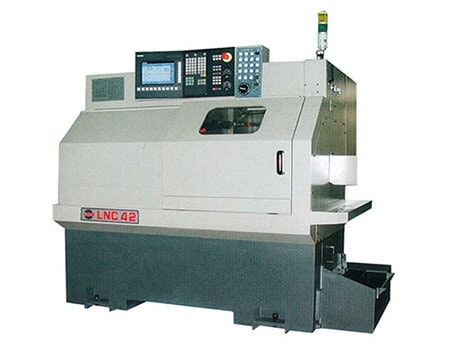

- Best value and most versatile machine available for all production shops.
- Optional hydraulic live tools, Both facing and crossing, Allows secondary combined with 48-position spindle indexing or C-axis. Good for various secondary operation.
- Can be used as a gang tool machine or an optional 8-position turret.
- Use of an optional bar feeder for unattended high volume production.
Live tool
Hydraulic live tool with the spindle 48 dividing system and C-axis function can make secondary operation on the machine.
High speed, high precision indexing turret
The 8-position tool turret ensures high repeated positioning accuracy and rigidity. Rapid indexing time from 0.15 sec. to 1.2 sec, The tool disc has a built-in coolant nozzle that is directed straight to the tool tips.
Live tool
Insures high rigidity. TURCITE coating allows for smooth and precise movements. Telescopic cover protect the ballscrew.
The dovetail X-axis slide
permits mounting of gang tools (sub plate also available) and or hydraulic tooling spindle as well as an 8-position turret with thru coolant.
Standard controller
Either "MITSUBISHI" M64SL or "SIEMENS" 802D or FANUC OiMATE controller.
3-Jaw hydraulic chuck
This machine can be equipped with a Ø06" or Ø 8" 3-jaw hydraulic hollow chuck as option. For enlarge workpiece machine.
*Standard equipments
- Collet chuck LNC42 F48 (Max.Ø42)
- Collet chuck LNC65 F72 (Max.Ø65)
- Hydraulic system
- Coolant system
- Automatic lubrication system
- Work lamp
- Front door safety interlock
- Tool box & tool kits
- Control cabinet heat exchanger
- Spindle dividing system (48 pos.)
- Bar feeder interface
- Foot pedal for collet & chuck open/close
- Standard tool holders
*Optional accessories
- 6” hollow power chuck (LNC42)
- 8” hollow power chuck (LNC65)
- Chip conveyor with cart
- Parts catcher
- Extra tool holder
- Automatic bar feeder
- Tool turret 8 pos. for LNC42
- Tool turret 12 pos. for LNC65
- Rotary tool with hydraulic system
